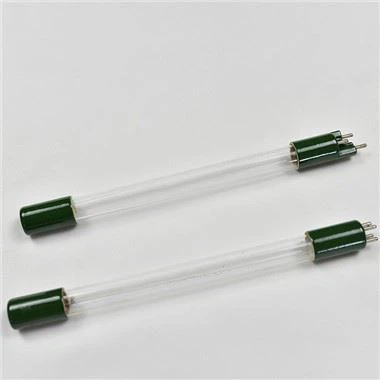

Me Flange Style UV-C Germicidal Teeb 28W
UVC teeb yog tsim los ntawm quartz raj uas tuaj yeem nkag mus rau ultraviolet wavelength 254nm, ultraviolet yoj 185nm tsim ozone uas yaj hauv dej los rhuav tshem cov phab ntsa ntawm cov kab mob, thiab yog li tua lawv tam sim ntawd.
Hauj lwm lawm
UVC teeb yog tsim los ntawm quartz raj uas tuaj yeem nkag mus rau ultraviolet wavelength 254nm, ultraviolet yoj 185nm tsim ozone uas yaj hauv dej los rhuav tshem cov phab ntsa ntawm cov kab mob, thiab yog li tua lawv tam sim ntawd.
Ultraviolet thev naus laus zis tau ua ib txoj hauv kev zoo tshaj plaws ntawm kev kho dej thiab huab cua huv.
1.Four-Pin, ib qho kawg UV germicidal teeb.
2.Ua los ntawm cov khoom zoo quartz.
3.Qhov nruab nrab lub teeb lub neej yog 10,000 teev.
4.Ozone-dawb teeb (254nm) thiab ozone-generating teeb (185nm) yog rau xaiv.
5.Quartz tes tsho thiab ballasts muaj.
Me Flange Style UV-C Germicidal Teeb 28W | ||
| Qauv NO. | GPH550T5L |
Zuag qhia tag nrho ntev | 150MM | |
Watt | 28W | |
Txoj kab uas hla | 15 MM | |
Kev siv ultraviolet hauv 1 meter | 85 ua/cm2 | |
8.5W | ||
Tam sim no | 425mA ua | |
Liftime | 9000h ib | |
Hom | Hom | Hwj chim | Txoj kab uas hla | Ntev (BF-BF) | Tam sim no | Qhov hluav taws xob | UVC tso zis | Lub neej |
Ozone Dawb | Ozone | W | mm | mm | A | V | µ w/cm² | H |
GPH118T5L | GPH118T5VH | 6 | 15 | 118 | 425 | 25 | 13 | 9000 |
GPH150T5L | GPH150T5VH | 8 | 15 | 150 | 425 | 27 | 20 | 9000 |
GPH212T5L | GPH212T5VH | 10 | 15 | 212 | 425 | 30 | 26 | 9000 |
GPH287T5L | GPH287T5VH | 14 | 15 | 287 | 425 | 41 | 40 | 9000 |
GPH303T5L | GPH303T5VH | 15 | 15 | 303 | 425 | 43 | 43 | 9000 |
GPH357T5L | GPH357T5VH | 17 | 15 | 357 | 425 | 51 | 57 | 9000 |
GPH406T5L | GPH436T5VH | 21 | 15 | 436 | 425 | 62 | 72 | 9000 |
GPH550T5L | GPH550T5VH | 28 | 15 | 550 | 425 | 69 | 85 | 9000 |
GPH793T5L | GPH793T5VH | 37 | 15 | 793 | 425 | 112 | 120 | 9000 |
GPH843T5L | GPH843T5VH | 40 | 15 | 843 | 425 | 120 | 135 | 9000 |
GPH1148T5L | GPH1148T5VH | 55 | 15 | 1148 | 425 | 165 | 170 | 9000 |
GPH1554T5L | GPH1554T5VH | 75 | 15 | 1554 | 425 | 220 | 220 | 9000 |
GPH1630T5L | GPH1630T5VH | 79 | 15 | 1630 | 425 | 231 | 228 | 9000 |
Cov zis siab
Hom | Hom | Hwj chim | Txoj kab uas hla | Ntev (BF-BF) | Tam sim no | Qhov hluav taws xob | UVC tso zis | Lub neej |
Ozone Dawb | Ozone | W | mm | mm | A | V | µ w/cm² | H |
GPH212T5L/HO | GPH212T5VH/HO | 18 | 15 | 212 | 800 | 23 | 50 | 9000 |
GPH287T5L/HO | GPH287T5VH/HO | 27 | 15 | 287 | 800 | 34 | 75 | 9000 |
GPH357T5L/HO | GPH357T5VH/HO | 32 | 15 | 357 | 800 | 40 | 95 | 9000 |
GPH436T5L/HO | GPH436T5VH/HO | 48 | 15 | 436 | 800 | 70 | 120 | 9000 |
GPH793T5L/HO | GPH793T5VH/HO | 72 | 15 | 793 | 800 | 90 | 210 | 9000 |
GHO36T5L | GHO36T5VH | 80 | 15 | 843 | 800 | 127 | 260 | 9000 |
GPH893T5L/HO | GPH893T5VH/HO | 90 | 15 | 893 | 800 | 135 | 270 | 9000 |
GHO64T5L | GHO64T5VH | 150 | 15 | 1554 | 800 | 220 | 400 | 9000 |
GPH846T6L/HO | GPS846T6VH/HO | 80 | 19 | 843 | 1000 | 130 | 280 | 9000 |
GPH1148T6L/HO | GPH1148T6VH/HO | 120 | 19 | 1148 | 1000 | 185 | 340 | 9000 |
GPH1554T6L/HO | GPH1554T6VH/HO | 150 | 19 | 1554 | 1000 | 230 | 400 | 9000 |
Muaj nuj nqi:
1.Physical germicidal: UVC Germicidal teeb, xws li 30 lub sij hawm ntawm lub hnub ci, muaj peev xwm muaj peev xwm, tuaj yeem ua haujlwm rau lub txaj, chav tsev, khoom nto.
2.All-Purpose UVC huv lub teeb: tuaj yeem siv rau chav pw, quilt, hauv ncoo, da dej phuam, chav dej, chav dej, chav ua noj, HVAC duct, thiab lwm yam.
3.Clean: huab cua qias neeg yog qhov ua txhaum loj hauv kev ua rau tib neeg lub cev tsis zoo, nws yog qhov tsim nyog yuav tsum siv lub teeb UVC no ob zaug ib lim tiam.
Cim npe nrov: me flange style uv-c germicidal teeb 28w, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, yuav, nqe
